Tick Signal Generator

Description

You need this circuit if you want to convert an ATX power supply into an Amiga power supply. This circuit generates the Amiga-specific TICK signal and, more recently, the -5V voltage required in the Amiga models A1000, A2000 and A3000.

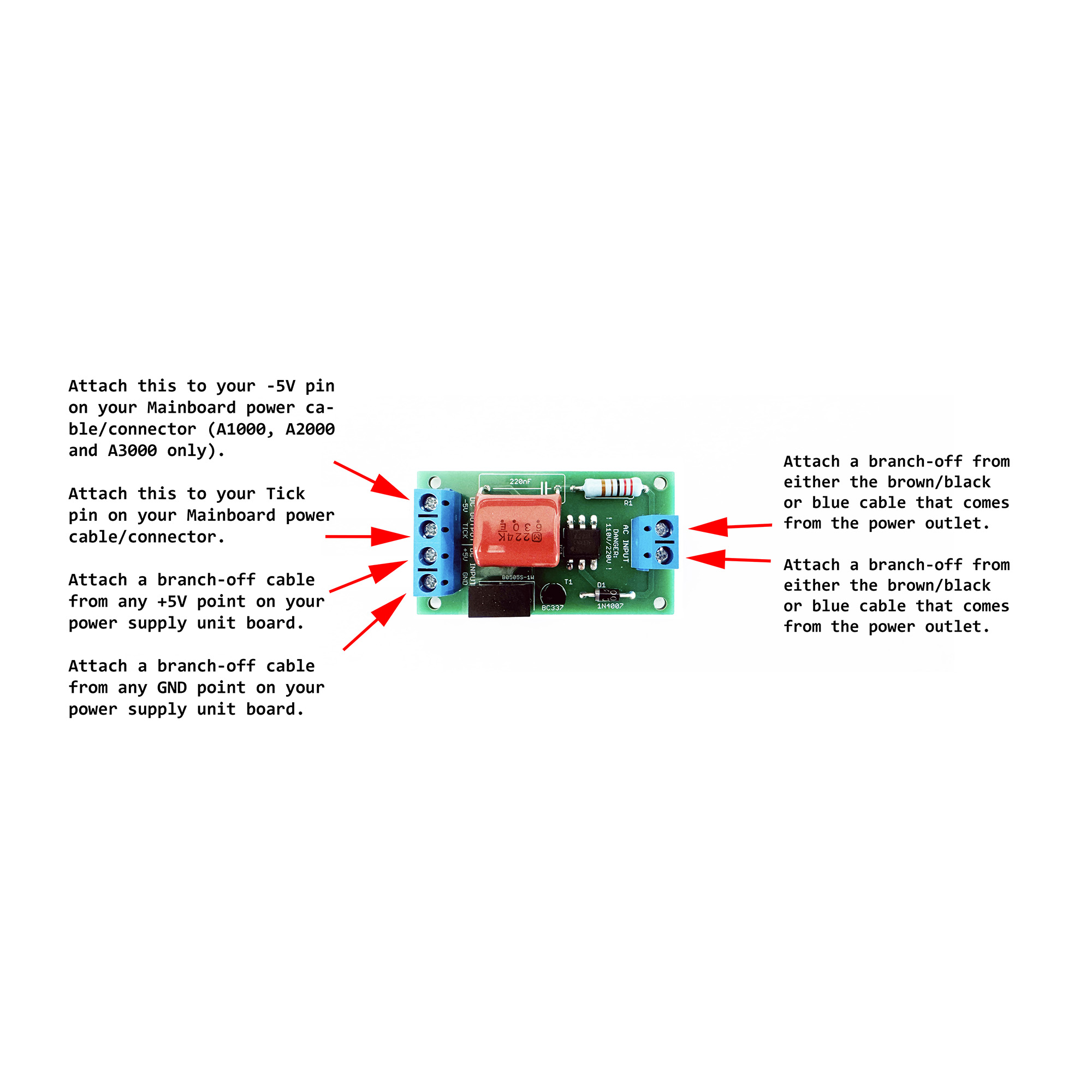

Please have a look at this picture that illustrates how to connect the TickIt circuit to your PSU. Additional information can be found in the Amiga Guide of the tickit.lha archive available on aminet.net.
